CM-V8 Equipped with 8 spindles * 1 gantry and X/Y linear motor which makes machine running fast and stably, max LED mounting speed can readh 40,000 pcs/Hour, Lens mounting speed can reach 18, 000 pcs /hour.
Shipping information About the World shipping,pls send e-mail to us at sales@1clicksmt sales@1clickmachine.com or call our professional sales engineer at +86-0769-85303739 On Skype: any questions,pls feel free to contact us by skype-oneclickmachine |
|

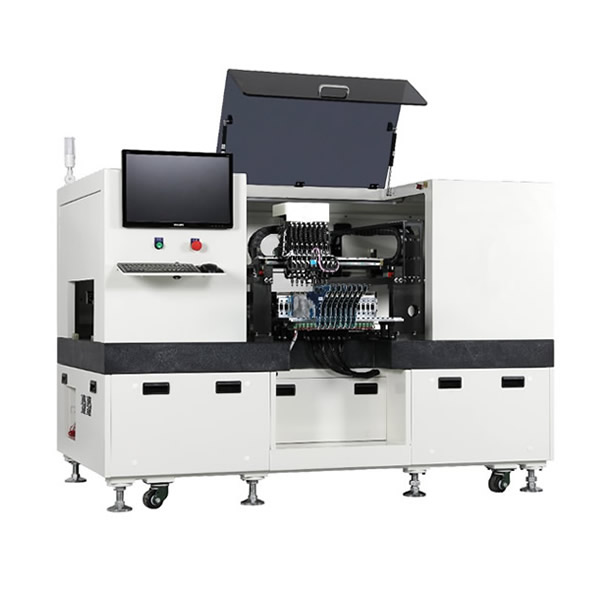

High Speed LED&Lens Mounter CM-V8 Features |
Realizes high Placement Speed of 40,000 CPH for LED, 18,000 CPH for Lens |
8 spindles * 1 grantry driven by linear motor. |
![]() |
Suitable parts and boards: |
● Applicable to parts:LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206. Lens. ● Applicable to Max. 1200(L) x 460(W) PCBs for long boards applied to LEDs and lens. |
Solid granite platform, X/Y axis driven by linear motor, ensure machine running fast and stably. Electronic feeder ensure stable compoment feeding. High quality parts ensure long service life of machine. |
![]() |
8 Channel lens vibration bowl feeder for lens mounting.(Option) |
![]() |
High Speed LED&Lens Mounter CM-V8 Specifications | |
Machine model | CM-V8 |
Alignment | Flying vision |
Number of Spindles | 1 head *8 spindles |
Driving method | X /Y with linear motor, Z with step motor |
Mounting speed | Max 40,000 CPH for mounting LED, 18000CPH for mounting lens |
Component range | LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206, lens. Max component height: 12mm |
PCB | Max 460(W)*1200(L)mm, thickness: 0.5 to 3.0mm |
Conveyor | 900+/-20mm |
Feeder station | 20 pcs *12mm feeder |
Power supply/air pressure | 1P, AC 220V /50HZ, 0.5~0.7Mpa |
Power | 3.2KW |
Machine weight | Approx 1600KG |
Machine size | 2000(L)*1400(W)*1400(H)mm |
