CO2 Laser Marking System LM510-C

Quick Overview

LM510-C is a fully automatic laser marking machine for marking 1D code, QR code, text, symbol or graphic on the surface of PCB. It consists of laser marking system, XY precision motion platform, CCD visual system for PCB positioning, conveyor with automatic width adjustment and camera online barcode reading system.

● USA made Synrad’ s 48-series CO2 laser system.

● Capable to print 1D barcode, 2D Data matrix barcode, 2D QR code etc.

● PCB size: 80ⅹ80mm(Min)~L510ⅹW510mm(Max).

● X/Y Repeatable accuracy ± 0.025mm.

● Onine Barcode reading system.

● Built-in PCB flipping system (option), Max PCB board: L510 *W460mm.

● Industrial PC, full English interface with Windows 10 OS.

Laser head

laser head

●   Laser head:Synrad’ s 48-series Rugged & reliable.

●   Wave length: 10640nm

●   More than 50,000 applications worldwide Service life: more than 40,000 hours.



Frequently used bar code format.

laser head

●   Frequently used bar code format.

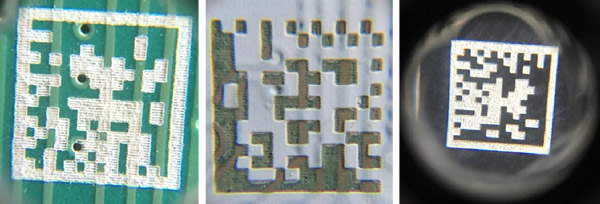

Mark Sample with CO2 laser head

●   Mark Sample with CO2 laser head



Mark Sample with CO2  laser head

●   Mark Sample with CO2  laser head  (under 60times microscope)



X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.

●   X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.



Optional built in PCB flipping system easily realize automatic PCB flipping and double side marking.

Flipping system

●   Optional built in PCB flipping system easily realize automatic PCB flipping and double side marking.



Standard equipped with fume extrator ensures a clean environment.

●   Standard equipped with fume extrator ensures a clean environment.

CO2 Laser Marking System LM510-C Dimensions:

Dimension

CO2 Laser Marking System LM510-C Features

●   CO2 Laser Marking System LM450-C with compact size, can be easliy intergrated into production line help you realize automation.

●   LM450-C is equipped with high quality USA made SYNRAD CO2 laser head, ensure long service life.

●   Capable to print 1D barcode, 2D Data matrix barcode, 2D QR code etc.

●   X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.

●   CCD +fiducial recognition system automatically correct the offset of PCB position.

●   Standard equipped with fume extrator ensures a clean environment.

●   CCD barcode reader check the printed barcode to avoid defective barcode printed going to next process.

●   Optional built in PCB flipping system realize automatic PCB flipping and double side marking.

●   Industrial PC, full English interface with Windows 10 OS, professional software, easy to operate.

CO2 Laser Marking System LM510-C Specification:

  Model

  LM450-C

  Laser type

  CO2 laser

  Laser wave length

  10640nm

  Laser head

  USA made Synradlasersystem

  Laser power

  Standard 10W/ Optional 30W

  varifocal range

  2D laser

  Working method

  laser moving

  Laser cooling

  Forced air cooling

  2D barcode marking

  minimum 2mm*2mm

  Laser scanning range

  55*55mm

  Repeatable positioning accuracy

  ±0.025mm

  Positioning system

  CCD + mark recognition

  Max PCB Size

  Standard with L510*W510mm
  Option with PCB flipping system 510*460mm

  PCB Thickness

  0.5—3mm

  PCB edge

  standard: bottom 5mm, top 3mm clamping without flipping device, top and bottom 5.5mm with flipping device.

  PCB Height

  top:35mm bottom:15mm without flipping device, top: 15mm/ bottom: 15mm with flipping device.

  PCB Clamping system

  Standard configuration

  Conveying System

  900+-20mm, left-right

  Marking object

  characters, 1D, 2D barcode, drawing data.

  Power supply

  1P, AC 220V, 50/60HZ

  Power

  1.5KW

  Machine size

  Standard: L 1101*W 1656*H1880mm

  Machine weight

  Approx standard: 900KG

CO2 Laser Marking System LM510-C Configuration:

Standard configuration:

●   Laser marking system with X/Y servo motor and ball screw.

●    Industrial PC, monitor, Keyboard, mouse.

●    10W CO2 laser system.

●    CCD with Fiducial mark recognition function.

●    CCD barcode reading system.

●    Fume extractor.

●    Automatic conveyor width adjustment.

●    1 year warranty.



Optional configuration:

●   Automatic PCB Flipping system.
