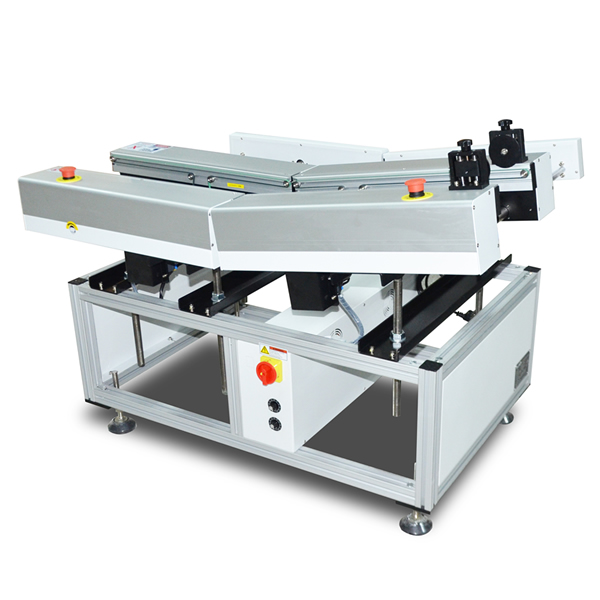

This conveyor is used to feed PCB’s or pallets into wave soldering machine.

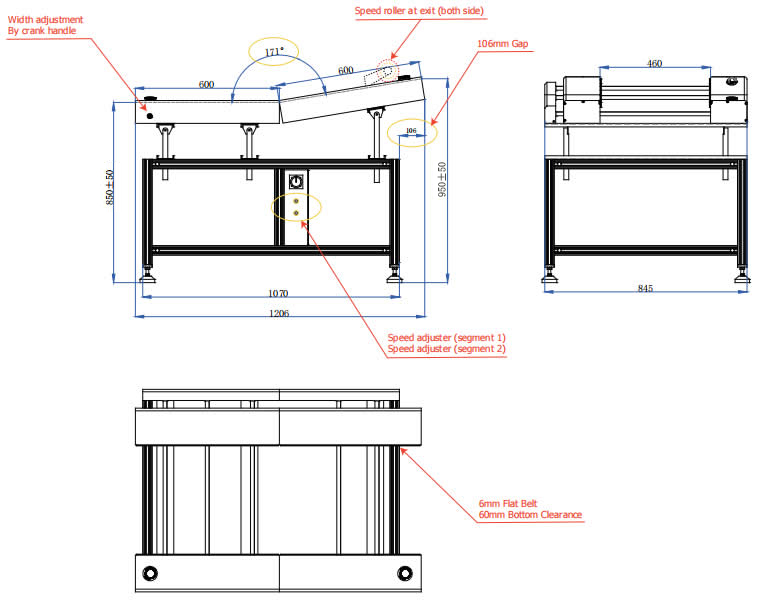

| Wave Solder Inloading Conveyor Dimension | ||||||||||||
 | ||||||||||||
| ||||||||||||
Wave Solder Inloading Conveyor Features : |
● 800mm Aluminum conveying guide rail. |
● Flet belt (3 mm edge). |
● Conveying motor with speed controller. |
● Smooth and parallel width adjustment.(lead screw). |
Wave Solder Inloading Conveyor Specification : | |
Model | MWN-800 |
Transport height: | 850mm ±50mm |
Transfer direction: | Left to right |
Operation side: | Front of the machine |
Fixed rail: | Front of the machine |
Interface: | SMEMA |
Conveyer concept: | Pin chain |
Belt speed: | 0-2m/min adjustable |
PCB edge support: | 5mm |
Power supply: | 230 VAC/50 Hz/1 Ph |
Power consumption: | 150VA max. or specify |
