A full range of various dry storage cabinets ensures that your production is based on the IPC/JEDEC Standard STD-033B for moisture sensitive devices.

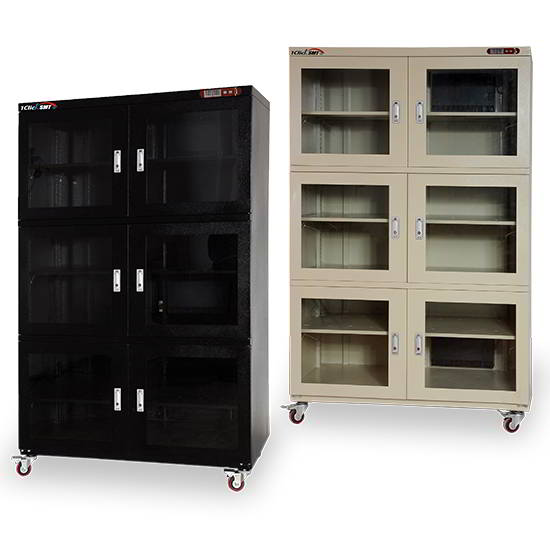

1428-6 Dry Cabinet Series Feature
● LED display; conveniently display temperature(Left/Green) and humidity(Right/Red). |
● Using 1.0 and 1.2mm Cold-rolled Steel, 3.2mm tempered glass, lock-key handle. |
● Door frame covered with magnet rubber keeps reliable air tightness. |
● Special desiccant in DRY-UNIT is semi-permanent. |
● Humidity controller maintains stable constant humidity. |
● Operation in normal temperature, noiseless, long life. |
● Fast dehumidifying speed, the humidity of inner cabinet can drop down in several minutes with the nitrogen cabinet TR-DG-1428-6(A). |
| ● Sturdy and durable shelf is movable up and down and slip layer board make the interspaces adjustable. |
| ● Energy saving design: low electricity consumption resurgence, no heating, no condensation dripping, absence of fan noise. |
|
1428-6 - Specifications |
||||
|
Model |
TR-FCM-1428-6(A) |
TR-FCD-1428-6(A) |
TR-FCDE-1428-6(A) |
TR-DG-1428-6(A) |
|
Humidity Range |
20-60%RH |
10-20%RH |
1-10%RH |
1-60%RH |
|
External Size(mm) |
W1200*D710*H1920 |
|||
|
Inner Size(mm) |
W1198*D680*H1738 |
|||
|
Material & Finishing |
Cabinet: high quality steel plate; Hard-coated resin paint |
|||
|
Max Capacity |
1428Liter |
|||
|
Power Consumption(W/H) |
0.5-47W/H(MAX370W) (AC 220V) |
|||
|
Power Source |
AC110-115V(50/60HZ) or AC220-240V(50/60HZ) |
|||
|
Removal Shelf |
5 (material: steel or stainless) |
|||
|
Door Key |
6 |
|||
|
Hygrometer |
1 |
|||
|
Caster |
4 |
|||
|
Note: 1."A" the model means ESD-Function, color is black. 2. “DG” means the nitrogen cabinet, customer shall order Nitrogen Gas in local to run the N2 cabinet! |
||||
